SOHC, Single-cylinder Enhanced Smart Power (eSP) Engine with ACG
The Alternating Current Generator (ACG) combines electricity generation with starting duties, saving weight.
Starting from £3,049

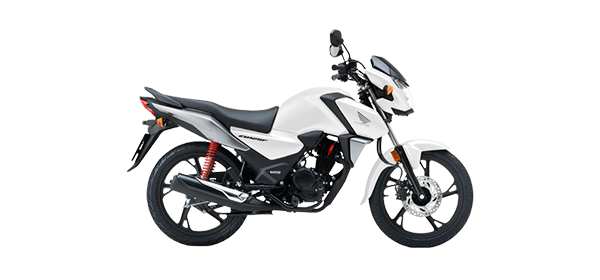

CB125F
.png?mode=max&upscale=true&width=640)
Start something special. Big on style. Big on build quality. Light on running costs.
View CB125F Offers
THE FIRST MOMENT OF MAGIC FREEDOM
You wind open the throttle and move forward, effortlessly. The CB125F has opened up a whole new world ahead. This motorcycle could be the beginning of your new adventure.
Redesigned from the wheels up around a super-efficient eSP engine and fine-handling chassis, it’s much lighter, much more economical and still packs the same great around-town performance. Where are you going? That’s up to you. Now, you have choices.
FULL-SIZED EXPERIENCE
We’ve given the CB125F a full-sized feel, for a full-sized experience. We’ve also cut 11kg in total, which you’ll notice when you twist the throttle and steer into a turn.
Equipment includes a digital dash and LED headlight. In addition, its single-cylinder air-cooled, 2-valve eSP (enhanced Smart Power) PGM-FI fuel-injected engine has been designed tough. But it’s clever, too. That’s why it can deliver smart acceleration and fuel efficiency of 65km/l – giving a potential 800km range between fill-ups.
We know you might be riding a motorcycle to get to work, or as a way of life, an escape from the day-to-day. Either way, you may as well start something special, with each turn of the key.
BIG-BIKE STYLE & HANDLING
The CB125F features the signature CB-family style of a broad-shouldered fuel tank and silver side shrouds. But it’s also got something of its own going on. There’s wind protection from the angular nose fairing and fly screen, and the blacked-out engine and exhaust make bright graphics stand out sharply. Red rear shock springs add a sporty detail. A premium LED headlight picks out the way forward. Passengers get their own grab-rail and, for easy care of the sealed drive chain, there’s a centre stand.
BENEFITS OF BUYING FROM LLOYD HONDA MOTORCYCLES
We stock the full range of new Honda road bikes from scooters to superbikes. There are many benefits of buying a motorcycle from us, however, the key benefits are:
- 2-year warranty
- 2-year roadside assistance
- Competitive and flexible finance options
- Part-exchanges welcome
- Nationwide delivery
- Full workshop facility for service, repairs and MOT
- Extensive parts and accessories range
- Our friendly and welcoming team has over 100 years' collective experience of working with motorbikes, covering sales and service
Technical Specification
Dimensions and Weights
| Battery Capacity (VAh) | 12V/6AH |
| Caster Angle | 26° |
| Dimensions (L×W×H) (mm) | 2,035x765x1,080 |
| Frame type | Diamond; steel |
| Fuel Tank Capacity (Litres) | 13 litres |
| Fuel Consumption | 151.1 mpg |
| Ground Clearance (mm) | 160 |
| Headlights | 12V 35W (low), 35W (high) |
| Kerb Weight (kg) | 128kg (Front 58kg; Rear 70kg) |
| Seat Height (mm) | 775 |
| Trail (mm) | 97 |
| Wheelbase (mm) | 1295 |
Engine
| Bore × Stroke (mm) | 52.4x57.8 |
| Carburation | PGM-FI electronic fuel injection |
| Compression Ratio | 9.2:1 |
| Engine Displacement (cc) | 124.7cc |
| Engine Type | Air-cooled 4-stroke 2-valve OHC single with balancer shaft |
| Max. Power Output | 7.8kW @ 7,750rpm |
| Max. Torque | 10.2Nm @ 6,250rpm |
| Starter | Electric |
| C02 Emissions (g/km) | 45 |
| Oil Capacity (Litres) | 1.0 L |
Transmission
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Standard chain |
| Gearbox | 5 speed |
Wheels
| Brakes Front | 240mm disc with double piston caliper |
| Brakes Rear | 130mm drum |
| Suspension Front | 120mm telescopic fork (31mm diameter) |
| Suspension Rear | Dual rear shocks with 5-step spring preload adjustment |
| Tyre Size Front | 80/100 – 18M/C 47P |
| Tyre Size Rear | 90/90 – 18M/C 51P |
| Wheels Front | 18” six spoke cast aluminium |
| Wheels Rear | 18” six spoke cast aluminium |
Instruments and Electrics
| Headlights | 12V 35W (low), 35W (high) |
| Instruments | Speedometer, milometer, fuel gauge, rpm counter, gear position indicator |
| Tail Light | 12V 21W (stop), 5W (tail) |
Special Features
More Aggressive Styling
The angular nose fairing and fly screen cut through the air, while the broad-shouldered fuel tank features silver side shrouds, like the CB500F.
Tough Frame and Supple Ride Quality
A tubular high-tensile steel frame provides durability, matched to suspension that absorbs the hits.
Roll in Style
Split-spoke 18-inch cast aluminium wheels roll smoothly over rough road surfaces. CBS manages the front disc/rear drum braking combination.
All the Information You Need
The smart digital dash includes a gear position indicator, as well as real-time and average fuel economy, distance to empty and ECO indicator.
